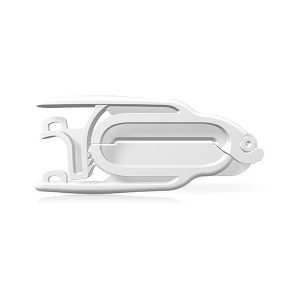

Tube Clamps

Our range of tube clamps effortlessly and securely close off flow and are available in three formats to suit a wide range of applications, including biopharmaceutical, drug discovery & development, fluid transport, pharmaceutical scale up and sterile bag systems.

  • Thin-walled tube clamps fit wall thicknesses 1/32″ (0.79 mm) to 3/32″ (2.38 mm) with a max OD of 1/2″ (12.7 mm).
  • Tube clamps fit wall thicknesses 1/8″ (3.2 mm) to 1/4″ (6.4 mm) with a max OD of 1″ (25.4 mm).
  • Large tube clamps fit wall thicknesses 1/8″ (3.2 mm) to 1/4″ (6.4 mm) with a max OD of 2.5″ (63.5 mm).

    • Key Features

    For use with silicone and TPE tubing
    Glass-filled nylon
    Easy, one-handed closure
    Pressure: Up to 150 psi (10.3 bar)
    Temperature -94° F (-70° C) to 140° F (60° C)
    Cryogenic freezing to -112° F (-80° C)
    Gamma radiation up to 50 kGy
    Autoclavable up to 273° F (134° C) for a maximum of 30 min
    Materials meet USP Class VI & ISO 10993 criteria

    To further discuss the range of tube fittings available, and how we can help you to find the perfect solution to keep your process under control. Please contact us, or request a callback at a convenient time to suit you.
