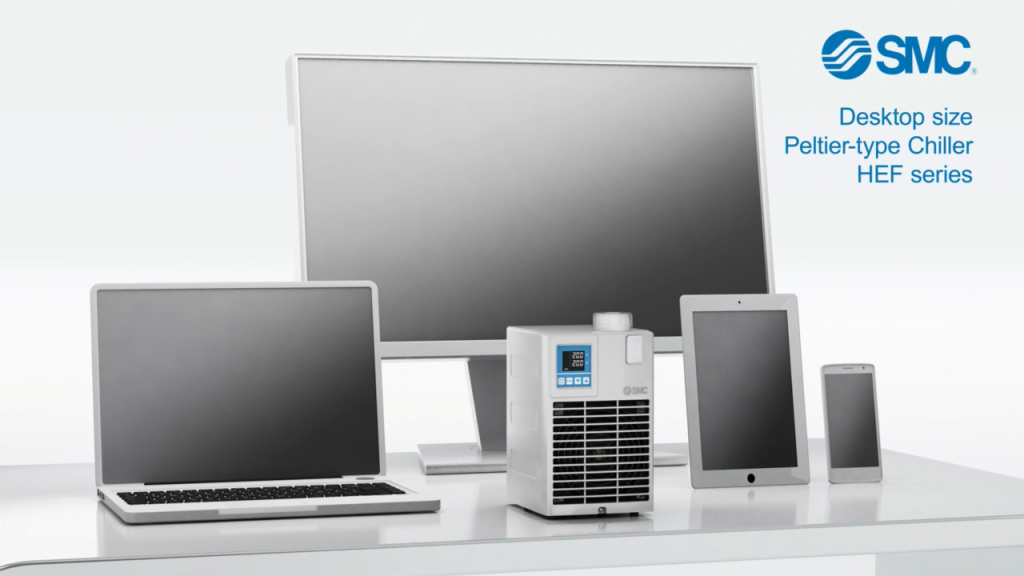

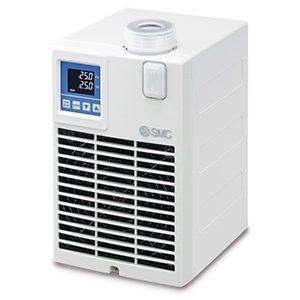

The HEF Series Compact Thermo Chiller (air-cooled, peltier type) is small but mighty. A desktop size chiller that provides a compact, quiet and fast solution for your process.
Minimise the space required for a temperature control unit with the Compact HEF Series Chiller.
How does the Peltier-type Compact Thermo Chiller work?
A Peltier-type thermoelectric module, is a thermal control device that can provide both heating and cooling effects.
The temperature of the circulating fluid is carefully controlled using a Peltier element, which is a special device that can heat or cool when powered by a DC power supply. The circulating fluid returns to the tank and is transferred by the pump which is built into the thermo-con, through the heat exchangers and a temperature sensor, and then out through the circulating fluid outlet.
Quiet and efficient temperature control
The HEF Series Compact Thermo Chiller produces minimal vibration, dust, and noise by eliminating moving parts like a compressor. By reducing the fan speed in low-load operation, the chiller maintains a low noise level that is similar to that of ambient sound of a quiet residential area.
Features:
- Cooling capacity up to 220 W
- Heating capacity up to 500 W
- Temperature stability: ± 0.1°C
- Set temperature range: 10°C to 60°C
- Replaceable dustproof filter
Benefits:
- Refrigerant-free
- Environmentally friendly
- Quiet, low-noise design – 37 dB (at low load)
- Easy to use and maintain
- Fast and reliable temperature control
- Only takes about 41 seconds to lower the temperature by 10°C
